NC Series
DLTEK DV-NC Series offers high-performance, servo-driven multislide technology. By integrating NC-controlled feeding and stamping, with high-speed conjugate/twin cam-guided forming motions, our system delivers:
· Reliable High-Speed Efficiency: Optimized production of complex strip & wire parts.
· Cost Saving: Up to 30% reduction in stamping waste vs. traditional presses.
· Reliable Performance: Intelligent sensors and auto-lubrication for sustained high performance while reducing maintenance downtime.
· Modular Versatility: Optional casing, front cams, and spinners for tailored needs.

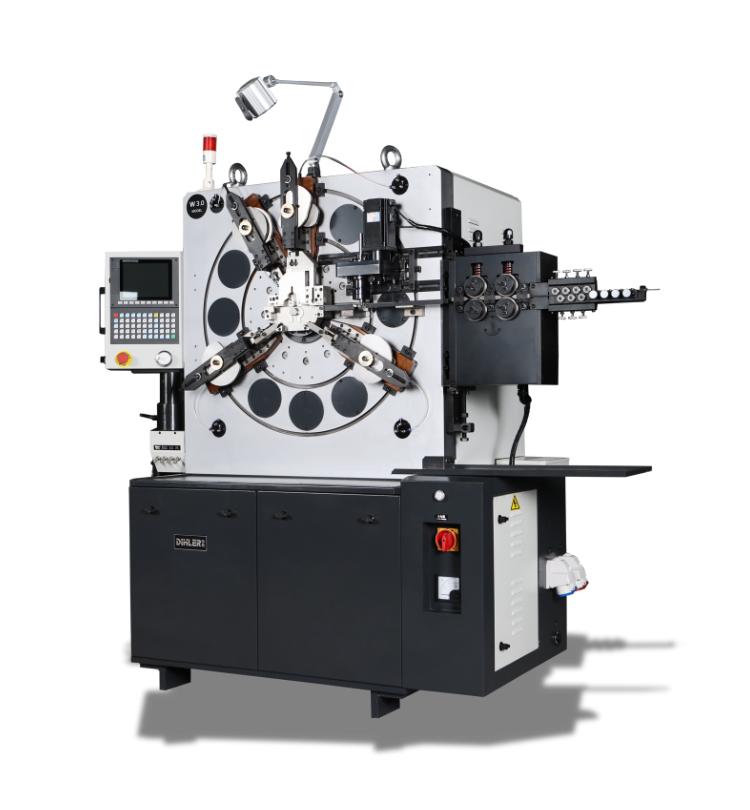

W3.0
Specialized for wire components, the W3.0 replaces the stamping module with dedicated bending components to optimize radial wire forming and production.
See more

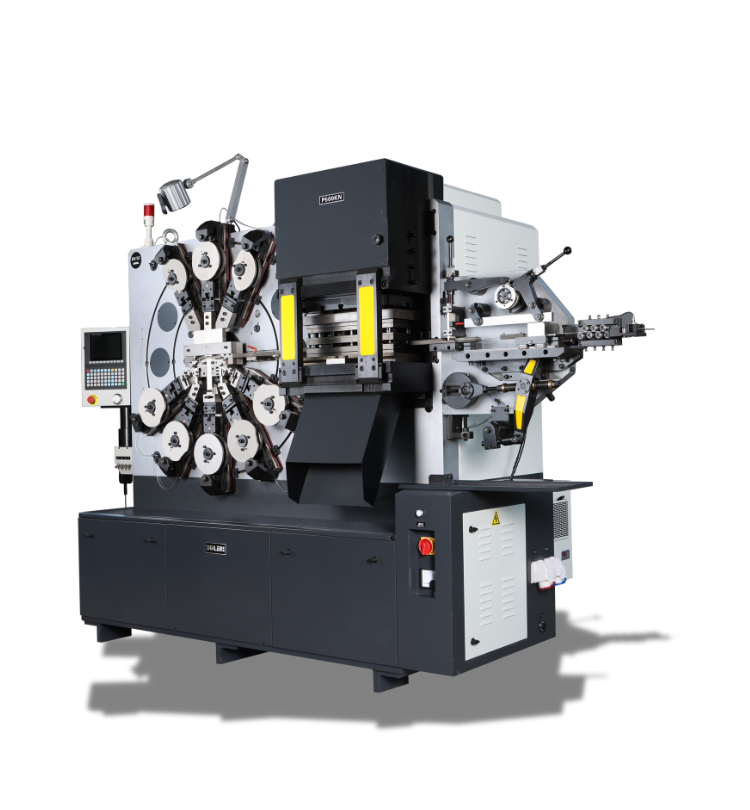

DV50 NC
A 50-ton vertical multislide for heavy-duty parts and wire up to 60mm wide and 3.0mm thick. Ideal for EV busbars and automotive brackets, it eliminates secondary operations with high-speed, synchronized precision.
See more

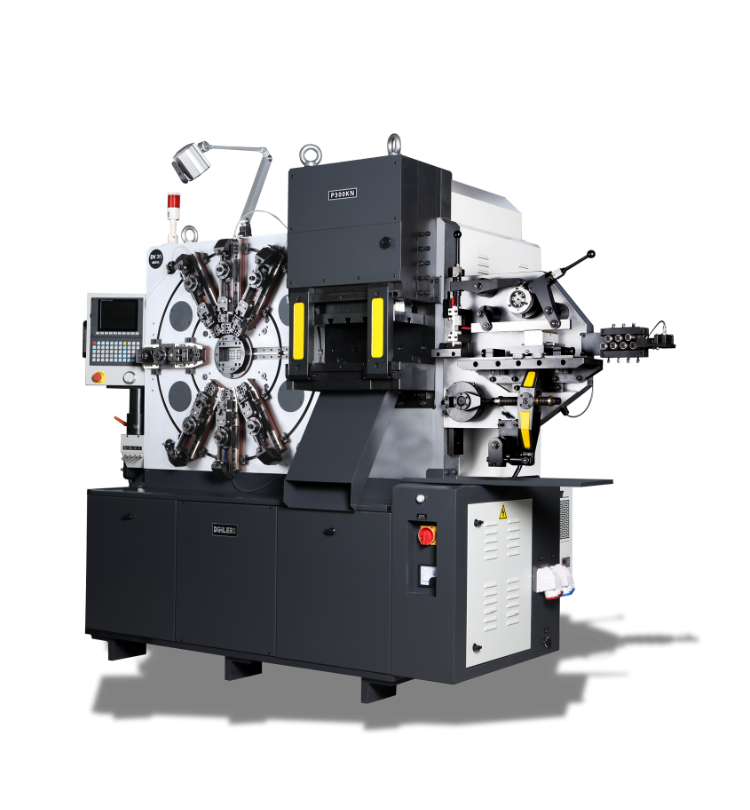

DV30 NC
High-performance 30-ton multislide for parts up to 50mm wide and 2.0mm thick. Optimized for EV battery pins, precision cabinet hinges, and spring clips, it eliminates secondary operations with high-speed precision.
See more

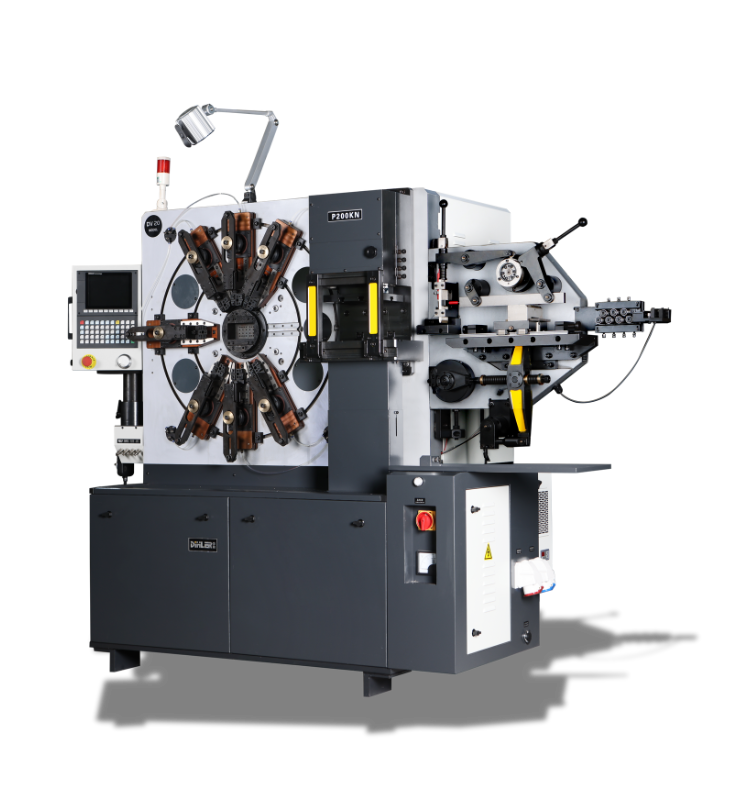

DV20 NC
Versatile 20-ton multislide for parts up to 40mm x 1.5mm. Optimized for surgical clips, EV battery pins, and industrial fasteners. Offers the simplest tooling design and maximum part coverage for complex geometries.
See more

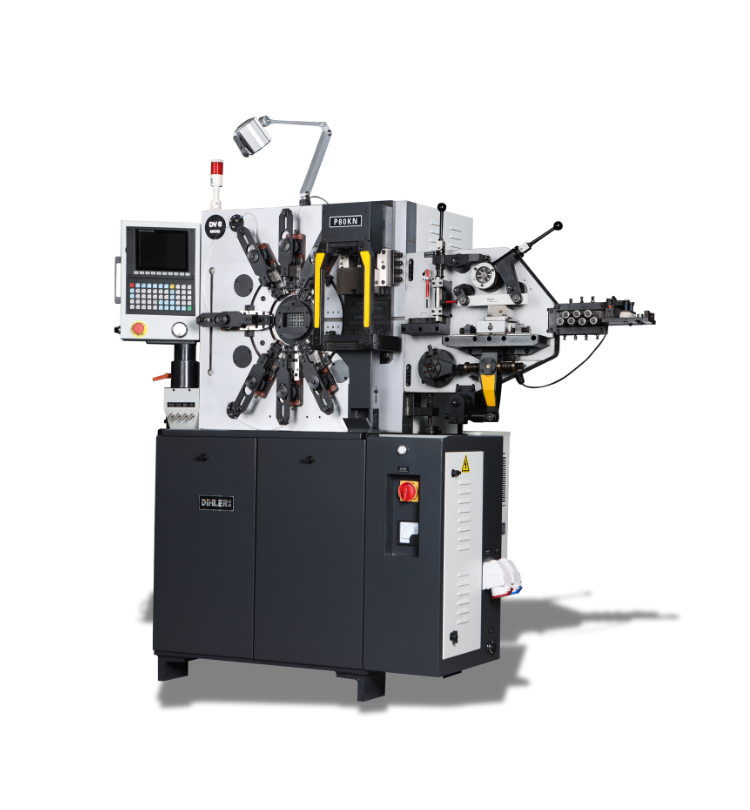

DV8 NC
High-speed 8-ton multislide for micro-components up to 30mm x 1.2mm. Specialized for terminal blocks, surgical staples, and spring cage clamps. Delivers maximum output for delicate electrical and medical parts with 0-secondary operations.
See more
